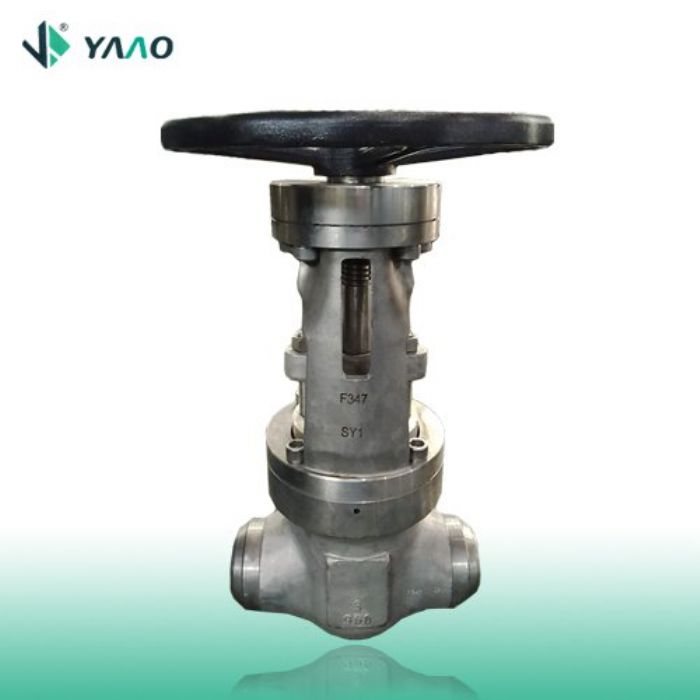

BW A182 F347 Forged Gate Valves

Descripción

BW A182 F347 Forged Gate Valve Design Specifications: Body Material: ASTM A182 F347. Size: From NPS 1/2 to NPS 4 Inch. Class: From ASME 900 to ASME 2500LB. Design: API 602, ISO 15761, ASME B16.34. Wall Thickness: API 602, ASME B16.34. Pressure-temperature Rating: ASME B16.34. Face-to-face Dimensions for Flanged Valves: ASME B16.10. Flange Design: ASME B16.5. Socket Weld Ends to ASME B16.11. Screwed Ends (NPT) to ASME B1.20.1. Butt Welding Ends: ASME B16.25. Pressure Testing: API 598. Quality Assurance (QA): Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
