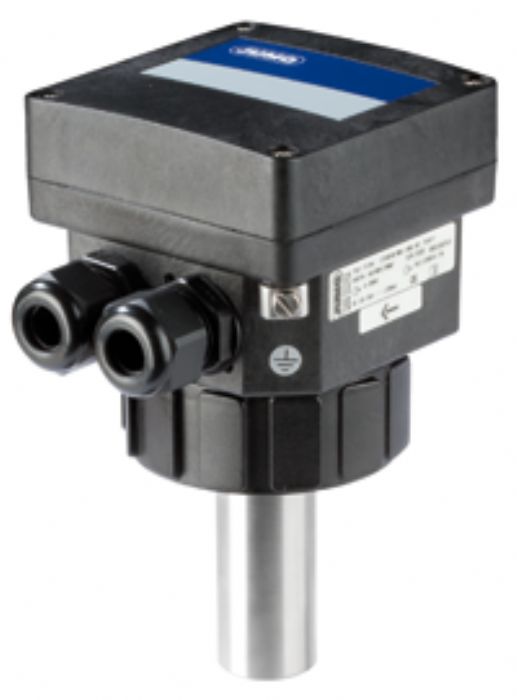

FLUJO
Descripción
for pressures up to PN 16 and temperatures up to 150°C Output signal 4...20 mA Stainless steel sensor No moving parts Simple installation .
Características principales
Economic The measuring instrument having no moving components, it is wear-free. No consequential costs. Versatile and uncomplicated The flow rate transmitter can be fitted to any pipe/tube diameter (DN15 to DN400) without restrictions. The measuring instrument can be fitted and removed as often as necessary. Applications Flow rate control (fresh water, waste water, irrigation) Flow measurement (water meter) Pump protection, pump control (fluid) Dosage/metering of chemicals (CIP systems) Dosage/metering (irrigation)
Ventajas competitivas
The flow rate transmitter is equipped with a magnetic inductive sensor (MID). Standardized fittings ensure simple installation of the transmitter into DN15 to DN400 pipes/tubes (see data sheet 40.6090). The transmitter can be used in fluids with a conductivity from 20µS/cm. Flow rates of 0.2 to 10 m/s can be measured. The transmitter provides an output signal of 4 to 20mA. The measured value is also presented as a frequency pulse signal of 0 to 240Hz. Simple control tasks can be achieved with the built-in relay.
