TRANSMISOR / CONTROLADOR
Descripción
Measurement of dissolved oxygen (DO) in aqueous solutions Safe 1-point calibration 2-wire transmitter (for basic and standard version) Electrical isolation of measurement signal (DO) and output signal (mA) Easy connection to an existing system (e.g PLC) Can be used as stand-alone system in maximum version Compensation of temperature, atmospheric pressure and salinity Further processing of the temperature of the medium is possible (separate Pt 1000 or 2-wire transmitter) Setup program for comfortable transmitter configuration / documentation Easy, safe service by replacement of modules Background lighting (for maximum version) .
Características principales

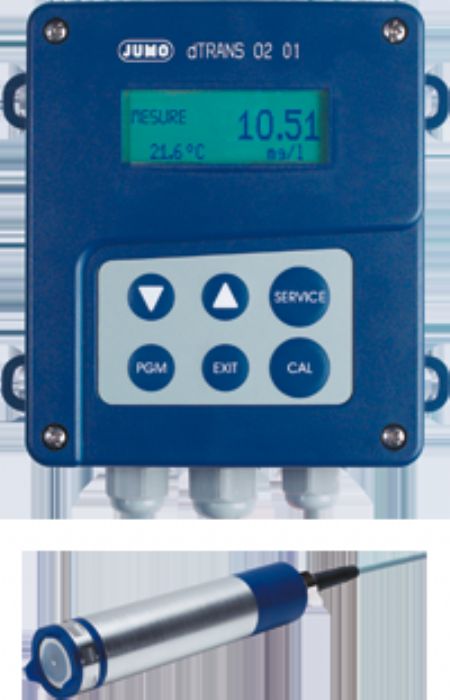

The JUMO dTRANS O2 01 2-wire transmitter serves to measure dissolved oxygen in watery solutions. It provides an electrically isolated output signal 4 ... 20mA according to the oxygen content. The device can be configured via a setup program or an optionally available connection and operating unit. The temperature of themedium to be measured can be detected and further processed (from the standard version also as 2-wire signal 4 ... 20mA) via a Pt 1000 in the 2-wire transmitter. Measurements are carried out with an electrochemical probe covered by a membrane. The microprocessor circuit installed in the 2-wire transmitter considers the factors: temperature, air pressure and salinity (salt content). The probe is designed as a module and can be easily maintained and replaced.
