TRANSMISOR DE pH CON CONTACTOS
Descripción
Display: mg/l, pH, mV, µS/cm Display visualization options: large numbers, bar graph or trend display Integrated 1-point and 2-point calibration routines Math and logic module Calibration logbook Integrated washing timer to control the cleaning equipment 12 integrated user languages Setup program features convenient programming and system documentation RS422/RS485 interface (option) PROFIBUS-DP interface (option) Data logger with real-time clock (option) Optional boards can be retrofitted .
Características principales

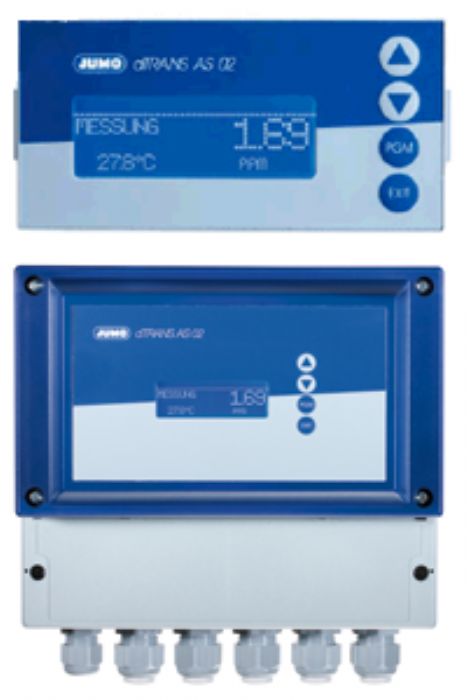

The JUMO dTRANS AS 02 is a compact, modular instrument, that has the flexibility (with 3 slots, optional boards, etc.,) to accomplish a wide range of tasks. Pt100 or Pt1000 resistance thermometers, NTC/ PTC or 0(4) to 20 mA and 0 to 10 V standard signals can be connected to the main input of the JUMO dTRANS AS 02. The two binary inputs can be used as the initiators for actions (such as HOLD, keyboard inhibit). The high-contrast, graphic display allows the input signals to be visualized by numbers or as a bar graph. Parameters are displayed in plain text for easily comprehensible and secure operation. The JUMO dTRANS AS 02 can be used as a two-point or three-point controller, a three-point modulating controller, or as a continuous controller. All controller outputs can be configured for P, PI, PD or PID action. The controller software includes parameter set selection and a math module. A setup program is available for convenient configuration via a PC. The instrument can be integrated into a data network by means of an RS422/RS485 or PROFIBUS-DP interface. Screw terminals on the back are used for the electrical connection.
