PRESOSTATO TRANSMISOR DE PRESION
Descripción
For temperatures between -50 and +260 °C (+500 °C) EHEDG certification Configuration performed with the rotary encoder on the temperature switch or setup program M 12 × 1 connector; protection type IP65 according to DIN EN 60529 with pushed in machine connector Positively lit LCD display .
Características principales

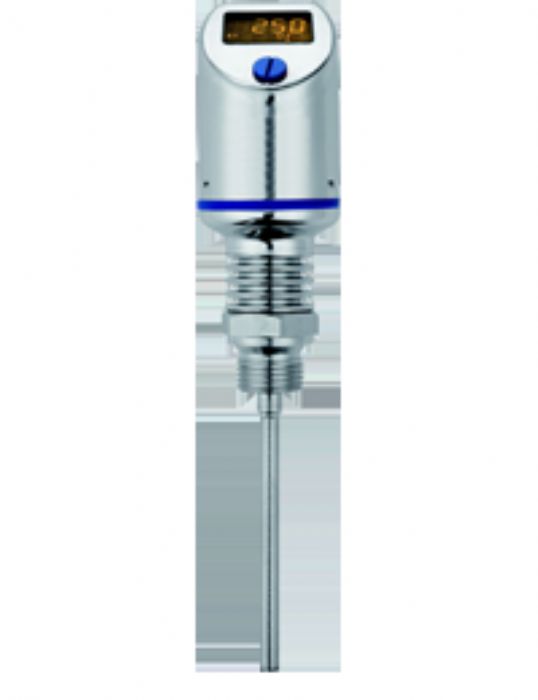

The highly precise, electronic temperature switch consists of a protection tube with built-in temperature sensor, a process connection, and an attached case with LCD display for the electronics. Depending on the application, the following output variants are available: 1× PNP or 2× PNP switching output (binary output) or 1× PNP switching output and 1× analog output. The configuration of the output signal and the measuring range can be customized. Depending on the version, the electronic temperature switch can be used in an operating temperature range between -50?to +150?°C, -50?to?+260?°C, and -50?to?+500?°C. The analog output signal 4 to 20 mA, 0 to 20 mA, 0 to 10 V or reversed 20 to 4 mA, 20 to 0 mA, and 10 to 0 V is available in a linearized fashion (temperature linear). The electronic temperature switch is designed for industrial applications and complies with the European standards to guarantee electromagnetic compatibility (EMC).
