INDICADOR
Descripción
Formats 48x24, 96x48 mm Digit height 10 or 20 mm Universal measuring input 1 binary input 2 alarm outputs Min, Max and Hold function via binary input customer-specific linearization correction 2 limit values are monitored Switch-on delay programmable after mains ON Protection class IP66 Configurable via keyboard or setup program .
Características principales

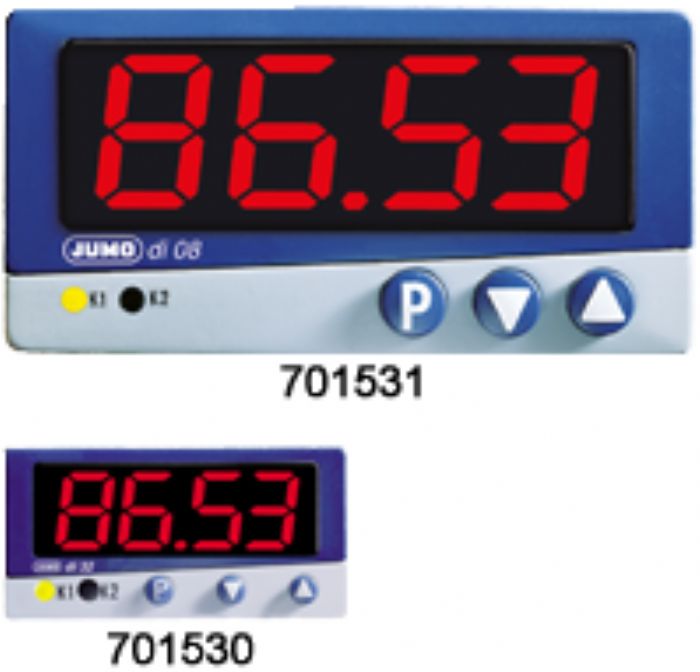

The 1-channel digital indicators with the front frame dimensions 48mm x 24mm and 96mm x 48mm serve to display measured values and monitor limit values. The universal input allows for the connection of thermocouples, RTD temperature probes, RTD long-distance transducers, potentiometers or transmitters with standard signal. The detection rate for the measuring input is 4 measurements per second. The indicators have a clearly legible 10mm (JUMO di 32) or 20mm (JUMO di 08) high (depending on the version), 4-digit LED display for measured value display and dialog guide during configuration. Protection class on the front is IP66. Electrical connection is carried out via a plug-type screw terminal strip. The possible input and output structure is shown in the above block diagram.
