CONTROLADOR
Descripción
48 × 24, 48 × 48, 48 × 96, 96 × 48, 96 × 96 mm formats Universal measuring input One binary input Two or three switching outputs Two-state/three-state controller One limit value is monitored Timer and ramp function Self-optimization Configurable via keypad or setup program .
Características principales

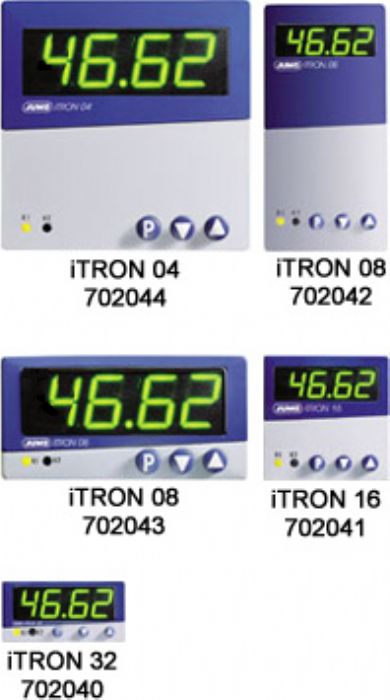

The JUMO iTRON controller series includes universal and freely programmable compact devices for a large number of technical control applications. It comprises five designs with front frame dimensions of 96 mm × 96 mm, 96 mm × 48 mm in portrait and landscape formats, 48 mm × 48 mm, and 48 mm × 24 mm. The controllers have an easy-to-read seven-segment display for actual values, setpoint values, or dialogs, with a height of 10 mm or 20 mm depending on the version. Only three keys are required to configure the device. Parameter setting has a dynamic structure allowing automatic application of the values after two seconds. The self-optimization feature installed as standard establishes optimum control parameters at the touch of a key. The basic type also includes a ramp function with an adjustable gradient. A timer function is integrated as extra code. All controllers can be used as two-state controllers with limit value monitoring or as three-state controllers. The linearizations of common measuring probes are stored. The protection type complies with IP65 on the front and IP20 on the rear. Electrical connection is made via a pluggable screw terminal strip. The possible input and output structure is shown in the above block diagram.
