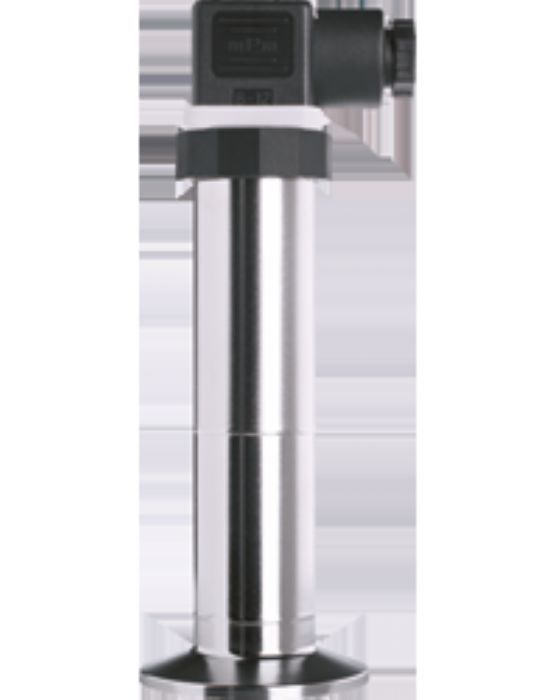

TRANSMISOR DE PRESION PARA ALTAS TEMPERATURAS

Descripción

For medium temperatures > 120 °C or frequent changes in temperature Temperature of medium at the diaphragm: -30 to +200 °C Measuring ranges: 0 to 1 bar up to 0 to 60 bar relative pressure, 0 to 1 bar up to 0 to 25 bar absolute pressure Fully welded stainless steel measuring system, without seals Optional raised linearity: = 0.2 % of end value Optional electrolytic polishing of process connection Hygienic design Protection type: IP65/IP67 .
