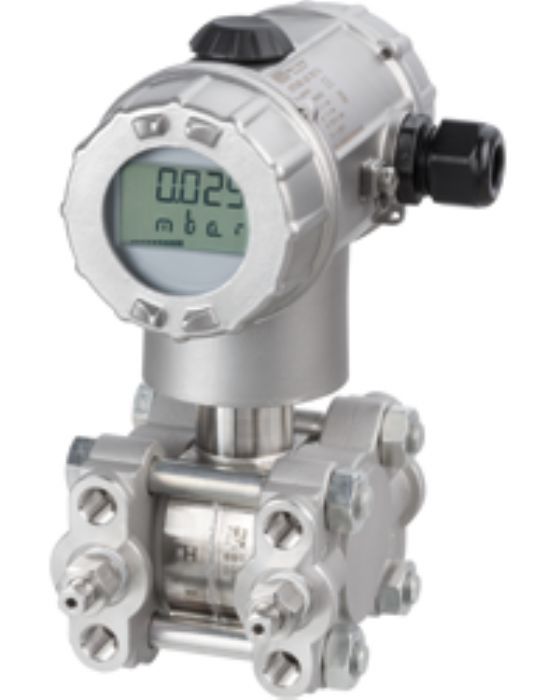

TRANSMISOR DE PRESION DIFERENCIAL CON INDICACION LOCAL A PRUEBA DE EXPLOSION
Descripción
HART® interface Optional explosion protection Ex ia according to ATEX, INMETRO, GOST-R Linearity: 0.07 % Turn down: 1:200 Simple operation with rotary knob Characteristic line and display also adjustable for flow measurement Stainless steel case Setup program LCD display with bar graph Display scaling with a choice of measuring units Display of sensor temperature Display of minimum and maximum pressures Current generator function .
Características principales
The JUMO dTRANS p20 DELTA differential pressure transmitter with HART® interface combines maximum precision with simple operation. It is used to measure the differential pressure of gases, vapors, and liquids. The integrated LCD display shows measured values and device data. The version with explosion protection "Ex ia (intrinsically safe)" allows the pressure transmitter to be installed up to zone 0. The case and sensors are manufactured from high-grade stainless steel. Pressure separators can also be connected for particular process technology applications (see data sheets 409772 to 409784). The transmitter is programmable. As a result it is readily adaptable to a variety of different measurement tasks. A convenient setup program is available as an accessory to enable operation via the interfaces. A rotary knob makes manual operation on site very convenient and quick. For version with explosion protection "Ex d" see data sheet 403023. For version for differential pressure, see data sheet 403025.
