CONTROLADOR DE TEMPERATURA
Descripción
144 × 130 mm format (installation dimensions 92 × 92 mm) 5 color graphic display Two-state controller, three-state controller, three-step controller, position controller, continuous controller Control of C-level, differential, ratio, and humidity 8 control channels (4 cascade controllers) Inputs/outputs have modular extensibility Extendable by 2 relay modules (8 relays each) Modbus interface, PROFIBUS-DP interface Freely configurable screen masks 50 programs with 100 segments and real time clock 16 control contacts Math and logic functions 16 limit values are monitored Recording function Teleservice through external modem Configuration with setup program .
Características principales

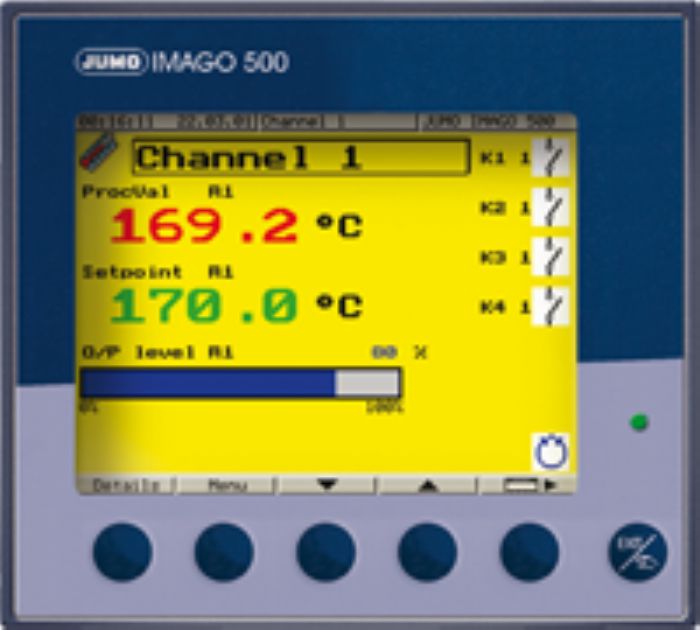

The JUMO IMAGO 500 is a process and program controller with up to 8 controller channels or 4 program channels. The device format is 144 mm × 130 mm for a DIN panel cut-out of 92 mm × 92 mm and a mounting depth of 170 mm. The display is a 5" color monitor with 27 colors. The user interface masks can be designed and adapted according to individual preferences. With 2 freely-configurable screen masks the user can place text, process values, background images, and icons as they see see fit. A maximum of 8 analog inputs and 6 binary inputs as well as 6 slots for switching outputs or analog outputs are available (4 of them can be used as either analog inputs or outputs). A setup program is available for the comfortable configuration on a PC. The linearizations of the common measuring probes are stored; 4 customer-specific linearization tables can be programmed. A math and logic module can be used to adapt the device to the most diverse control operations. The device can be integrated into a data network via 2 serial interfaces RS422/485 or PROFIBUS-DP. The user can easily retrofit modules (see the above block diagram). The electrical connection occurs at the back with screw terminals.
Ventajas competitivas
Control of temperatures, pressures, and other process variables according to setpoint value profiles. For example: Climate chambers Extruder Annealing furnaces Hardening furnaces Autoclaves Cooking chambers
Condiciones de pago
50% DE ANTICIPO Y 50% AL AVISO DE DISPONIBILIDAD EN NUESTRO ALMACEN
Condiciones de envío
4 A 6 SEMANAS
