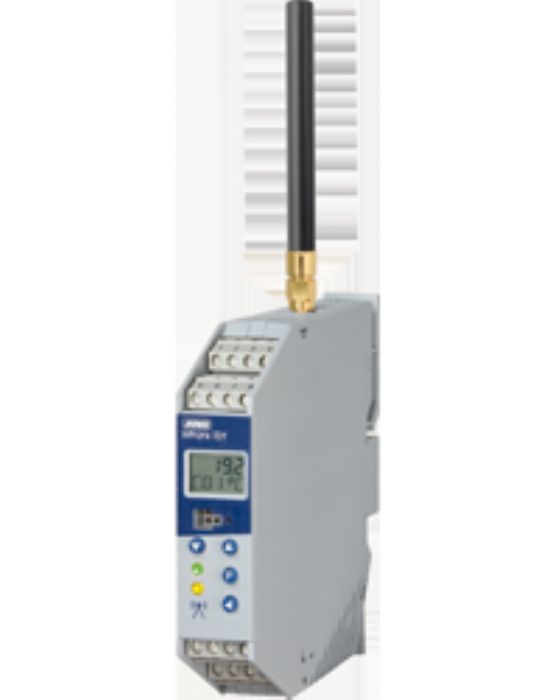

RECEPTOR INALAMBRICO DE TEMPERATURA Y/O PRESION
Descripción
Propiedades For measuring temperature, pressure, potentiometer, and voltage Interface RS485 with Modbus protocol Wireless measured value reception No wiring work due to modern wireless technology For up to 16 transmitters per receiver .
Características principales
The Wtrans receiver T01 in combination with suitable Wtrans transmitters is used for mobile or stationary measurements of physical variables. A significant reduction of the installation work is achieved due to the use of trendsetting wireless technology found in the industrial radio frequency 868.4 MHz or 915 MHz. Cable connections are not required, the radio-based sensor technology also functions in a rough industrial environment. The supplied lambda/4-antenna with an impedance of 50 ohm can be directly screwed on or fitted externally. If the antenna wall holder with a 3 m antenna cable is used then the open air range is 300 m. In the receiver the received measured values are converted, displayed, and are available as linear current or voltage signals (0(4) to 20 mA, 0 to 10 V) and via the digital interface RS485. All receiver outputs are electrically isolated. Linkage to higher-ranking systems (e.g. the system visualization software JUMO SVS3000 or the Modbus master compatible JUMO LOGOSCREEN nt paperless recorder) is possible via the digital interface with Modbus protocol. Operation and configuration is possible via the keypad in connection with a 2-line LCD display or a setup program for greater comfort. Thus, parameters such as filter constants, offset, alarms, and drag indicator (minimum and maximum value memory) can be separately set for each channel. For this purpose, a plug is provided on the front for a PC interface with TTL/RS232 or USB/TTL converter to connect the receiver and the PC. The receiver in the mounting rail case is intended for fitting on a DIN rail 35 mm × 7.5 mm according to DIN EN 60715. The screw terminals for the electrical connection are arranged at different levels. The conductor cross section may not exceed 2.5 mm2.
Condiciones de pago
50% DE ANTICIPO Y 50% AL AVISO DE DISPONIBILIDAD EN NUESTRO ALMACEN
Condiciones de envío
4 A 6 SEMANAS
