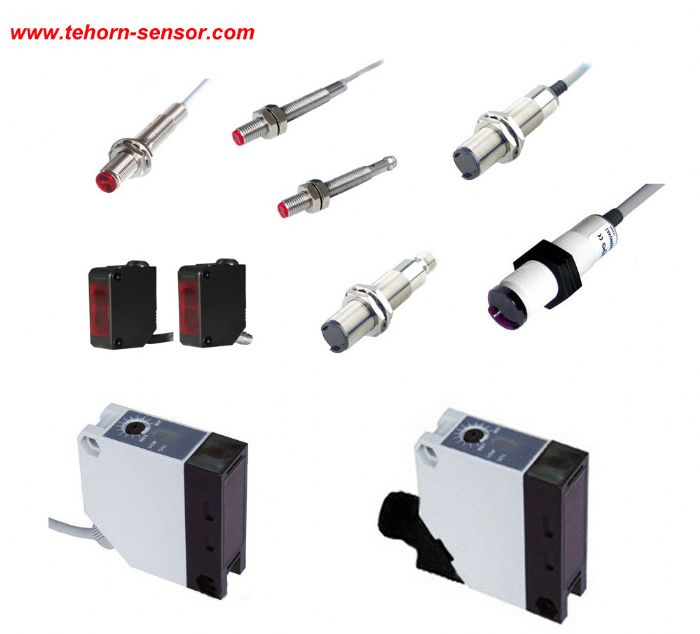

M8,M12,M18,M30,Q31,Q50 Sensores fotoeléctricos
Descripción
Diameter: M8, M12,M18,M30, Q31,Q50 Sensing Mode: Through-beam Mode,Diffuse Mode,Retro-reflective Mode Sensing Distance: M8: 3000mm(Through-beam Mode); M12: 5.2m/10m(Through-beam Mode) M12: 200mm(Diffuse Mode) M12: 1.5mm(Retro-reflective Mode) M18: 15m(Through-beam Mode) M18: 500mm(Diffuse Mode) M18: 3mm(Retro-reflective Mode) Q31: 5m/10mm(Through-beam Mode) Q31: 110mm/350mm/800mm(Diffuse Mode) Q31: 0.1~4.0m(Retro-reflective Mode) Q50: 20m/40mm(Through-beam Mode) Q50: 0.4m/1m/2m(Diffuse Mode) Q50: 10m(Retro-reflective Mode) Housing Material: stainless steel(M8); Nickel plated brass(M12,M18,M30) PBT Resin(M12,M18,M30,Q31,Q50) Indicator: Yellow LED/Green LED/Red LED Operating Voltage:10-30VDC/ 12-240VDC~24-240VAC Ripple: <10% Voltage Drop: <2.5V Switching Frequency: 200Hz Response Time: 1ms/1ms;5ms/5ms Hysteresis: <15%(Sr) Repeat Accuracy:<1.0%(Sr) Protection: IP67/IP65 Operating Temperature: -25 ? - +55 ? Ambient Humidity:35%RH~85%RH Short Circuit Protection: Yes Overload Protection: Yes Reverse Polarity Protection: Yes Material Active Face: PBT Connection: 2m cable/4 Pin Euro-style M12 Connector Output: PNP-Light On, PNP-Dark On;NPN-Light On, NPN-Dark On PNP-Light On & Dark On, NPN-Light On & Dark On; PNP-Light On or Dark On, NPN-Light On or Dark On; Dimension: M8x62.5mm with 2m cable M8x71.5mm with 3 Pin M8 Pico-style Connector M12x67mm with 2m cable M12x76.5mm with 4 Pin M12 Euro-style Connector M18x66.5mm with 2m cable M18x84.5mm with 4 Pin M12 Euro-style Connector Q31.5x20.2x12mm with 2m cable Q31.5x20.2x12mm with 4 Pin M8 Pico-style Connector Q50x50x18mm with 2m cable Q50x50x18mm with 4 Pin M12 Euro-style Connector .
Características principales
high quality while low price
¿Te interesa este producto?
Solicitar información
