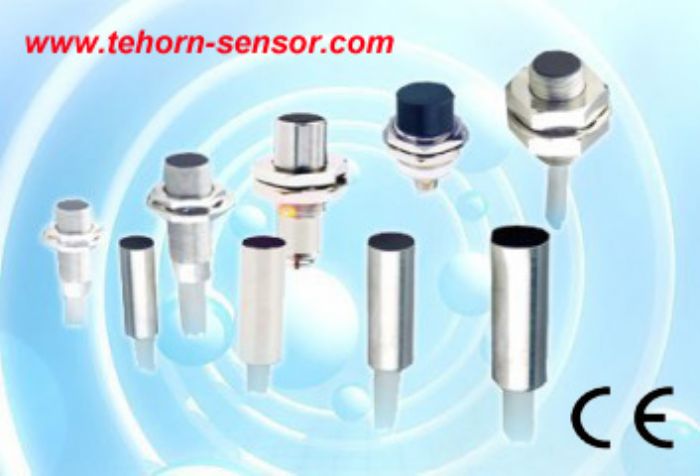

?6.5, M8, ?8,Q8,M12 Mini-shorter sensor inductivos de proximidad
Descripción
Diameter: ?6.5, M8, ?8,Q8,M12 Mounting: shielded Sensing Distance: ?6.5: 1mm/2mm/3mm(shielded); M8: 1mm/2mm/3mm(shielded); ?8: 1mm/2mm/3mm(shielded); Q8: 1mm/2mm/3mm(shielded); M12: 2mm/4mm/6mm(shielded); Housing Material: stainless steel(?6.5,?8);Nickel plated brass(M8,Q8,M12) Indicator: Yellow LED/Green LED/Red LED Operating Voltage:10-30VDC Ripple: <10% No Load Current: <10mA Max Load Current: 120mA/200mA Voltage Drop: <1.5V Switching Frequency: 2kHz Response Time: 0.1ms/0.1ms Hysteresis: <15%(Sr) Repeat Accuracy:<1.0%(Sr) Protection: IP67 Operating Temperature: -25 ? - +70 ? Short Circuit Protection: Yes Overload Protection: Yes Reverse Polarity Protection: Yes Material Active Face: PBT Connection: 2m cable/300mm Pigtail/4 Pin Euro-style M12 Connector Output: PNP-N.O./PNP-N.C.; NPN-N.O./NPN-N.C. Dimension: ?6.5x18mm with cable ?6.5x18mm with 300mm Pigtail ?6.5x32mm with 4 Pin Euro-style M12 Connector M8x18mm with cable M8x18mm with 300mm Pigtail M8x32mm with 4 Pin Euro-style M12 Connector ?8x18mm with cable ?8x18mm with 300mm Pigtail ?8x32mm with 4 Pin Euro-style M12 Connector Q8x8x16mm with cable, Q8x8x16mm with 300mm Pigtail Q8x8x16mm with 4 Pin Euro-style M12 Connector M12x22mm with 2m cable M12x45mm with 4 Pin Euro-style M12 Connector .
Características principales
high quality while low price
¿Te interesa este producto?
Solicitar información
