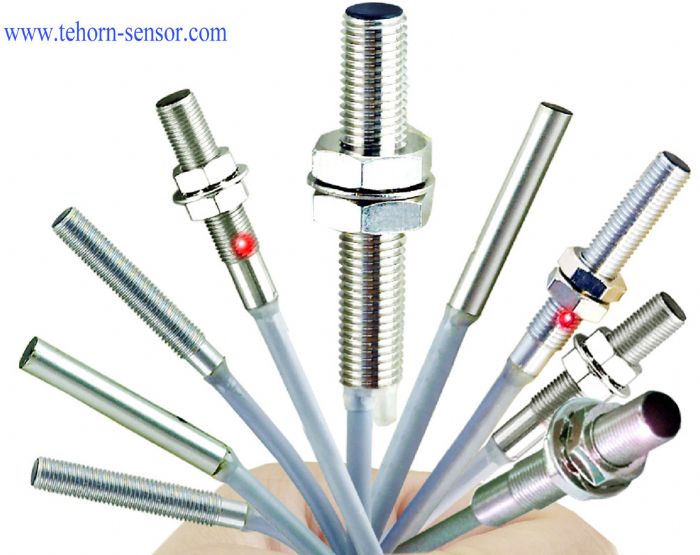

?3, M4, ?4,M5,Q5 Ultra-Mini sensor inductivos de proximidad
Descripción
Diameter: ?3, M4, ?4,M5,Q5 Mounting: shielded Sensing Distance: ?3: 0.6mm/0.8mm(shielded) M4: 0.6mm/0.8mm(shielded) ?4: 0.8mm/1.0mm/1.5mm(shielded) M5: 0.8mm/1.0mm/1.5mm(shielded) Q5: 0.8mm/1.0mm/1.5mm(shielded) Housing Material: stainless steel Indicator: Yellow LED/Green LED/Red LED Operating Voltage:10-30VDC Ripple: <10% No Load Current: <10mA Max Load Current: 120mA/200mA Voltage Drop: <1.5V Switching Frequency: 2kHz Response Time: 0.1ms/0.1ms Hysteresis: <15%(Sr) Repeat Accuracy:<1.0%(Sr) Protection: IP67 Operating Temperature: -25 ? - +70 ? Short Circuit Protection: Yes Overload Protection: Yes Reverse Polarity Protection: Yes Material Active Face: PBT Connection: 2m cable/300mm Pigtail Output: PNP-N.O./PNP-N.C.; NPN-N.O./NPN-N.C. Dimension: ?3x25mm with cable ?3x25mm with 300mm Pigtail M4x25mm with cable M4x25mm with 300mm Pigtail ?4x25mm with cable ?4x25mm with 300mm Pigtail M5x25mm with cable M5x25mm with 300mm Pigtail Q5x5x26mm with cable Q5x5x26mm with 300mm Pigtail .
Características principales
high quality while low price
