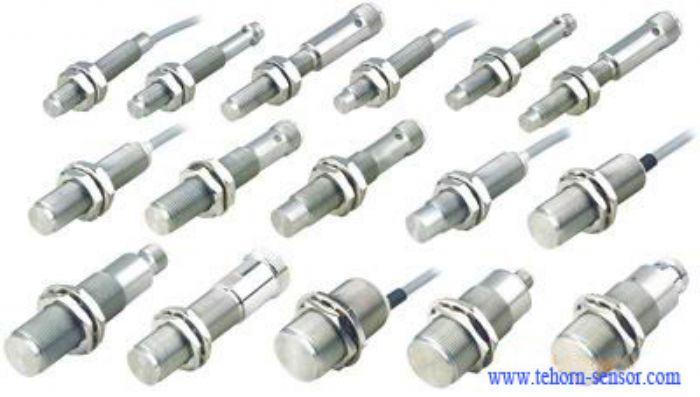

M8, M12, M18, M30 Full Metal sensor inductivos de proximidad
Descripción
Diameter: M8, M12, M18, M30 Mounting: shielded/non-shielded Sensing Distance: M8: 1mm/2mm/3mm(shielded);2mm(non-shielded) M12:2mm/4mm(shielded);4mm/8mm(non-shielded) M18: 5mm/8mm/12mm; 8mm/16mm/20mm(non-shielded) Housing Material: full stainless steel Indicator: Yellow LED/Green LED/Red LED Operating Voltage:10-30VDC/10-60VDC/10-55VDC Ripple: <10% No Load Current: <10mA Max Load Current: 200mA Voltage Drop: <1.5V/<2V Switching Frequency: 2kHz Response Time: 0.1ms/0.1ms Hysteresis: <15%(Sr) Repeat Accuracy:<1.0%(Sr) Protection: IP67 Operating Temperature: -25 ? - +70 ? Short Circuit Protection: Yes Overload Protection: Yes Reverse Polarity Protection: Yes Material Active Face: Stainless steel Connection: 2m cable/M8 Connector/M12 Connector Dimension: M8x30mm with cable,M8x45mm with cable M8x53mm with M12 connector,M8x70mm with M12 connector M8x45mm with M8 connector,M8x60mm with M8 connector M12x30mm with cable,M12x50mm with cable M12x50mm with M12 connector,M12x68mm with M12 connector M18x35mm with cable,M18x55mm with cable M18x48mm with M12 connector,M18x79mm with M12 connector M30x50mm with cable,M30x55mm with cable M30x48mm with M12 connector,M30x78mm with M12 connector .
Características principales
high quality while low price
¿Te interesa este producto?
Solicitar información
