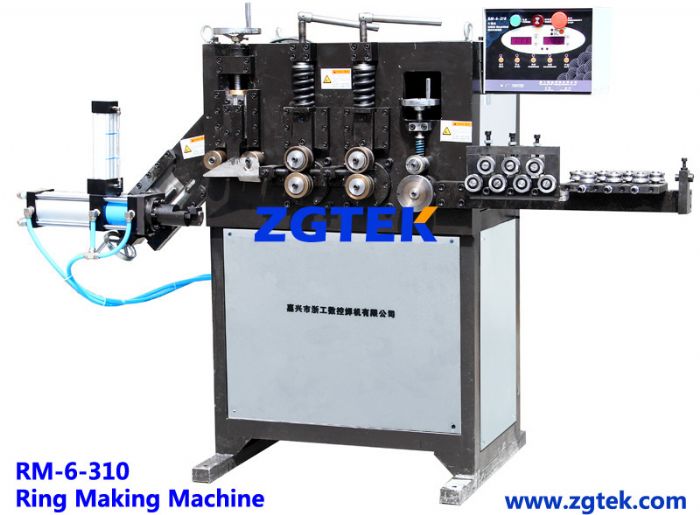

Ring making machine ZGTEK Co., Ltd
Descripción
Model: RM-6-310 Input voltage: 220V (2-phase) or customized Power freq.: 50Hz/60Hz Rated power: 2KVA Ring diameter: 90-310mm Wire thickness: 2.5-5mm Throughput: about 2200pcs/hour(for ring diameter 150mm) Cooling method: natural cooling Specially made for cage production 1.High precision: intelligent S shape speed curve, the encoder and the servo motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.25mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines. 2.High stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts which would get less precise due to wear-out. 3.Easy operation: ring size is adjusted by turning the wheel, much easier than traditional mechanical or hydraulic machines. 4.User friendly UI, the counter always shows the amount of rings formed. Electromagnetic oil valve, high-end oil pump with custom made oil disk provides stable oil pressure and variable speed Capable of saving up to 15 parameters, works easily with different ring radiuses and arcs Digital display, good for accurate and fast control 6-digit counter, easy to manage order quantity Reserved connector for extended functions Note: if input voltage is not 380V, a 3KVA 3-phase transformer is needed .
Características principales
Power freq.: 50Hz/60Hz Rated power: 2KVA Ring diameter: 90-310mm Wire thickness: 2.5-5mm Wire thickness 2.8-6mm Cooling method water cooling
Ventajas competitivas
Ring making machine cost effective option,robust structure lower maintenance cost perfect match with ZGTEK butt welder UR-40
Condiciones de pago
L/C,T/T
Condiciones de envío
Shanghai Port
