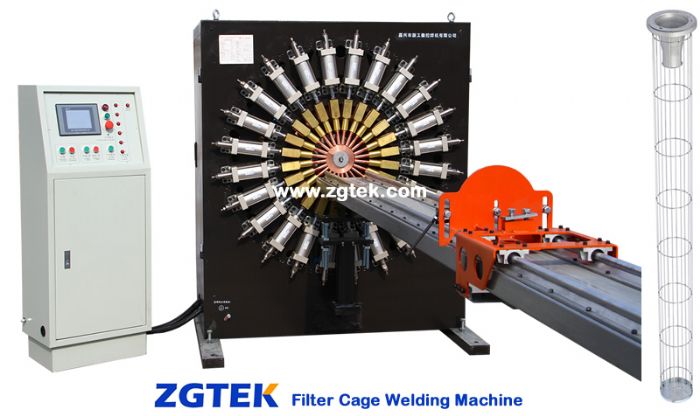

Filter cage welding machine ZGTEK Co., Ltd
Descripción
Input voltage: 380V(2-phase) or specified by customer Power frequency: 50/60Hz Power capacity: 80KVA Instant power in sync mode: 36KVA Instant power in async(time-sharing) mode: 18KVA Transformers: 2sets Air pressure: 0.6-0.8MPa Air flow: 300L/min Cooling method: natural cooling Weight: about 1000KG .
Características principales
Input voltage 380V50Hz, also can be custom-made Power consumption 18KVA-36KVA Stringer/rib/vertical wire quantity 8/10/12/14/16/18/20/22/24 Ring pitch programmable, no restrictions OD of filter cage 100-200mm Material of Cage SS, MS and GI wire
Ventajas competitivas
Cage welding machine - round/oval/star/conical 1. Weld galvanized(GI) wire direcly without damaging zinc plating 2. 25 cages/hr for 24-wire, 6m cage 3. Bad weld detection, auto re-weld 4. Linear Bearing Rail, better cage precision 5. Work with stainless steel, mild steel and galvanized steel wires, as well as different wire conditions 6. 54 groups of ring pitch(space) setting on touch screen 7. Touch screen control 8. Short pitch compensation, ensures enough space for inserting rings 9. Auto cage removal/unlocking 10. Cage pulled by step motor, ring space precision is 0.1mm; pulling speed is 0.4m/s
Condiciones de pago
L/C,D/A,D/P,T/T Delivery Time: 30 Days
Condiciones de envío
Shanghai Seaport
¿Te interesa este producto?
Solicitar informaciónEmpresa
ZGTEK Co., Ltd
Jiaxing
