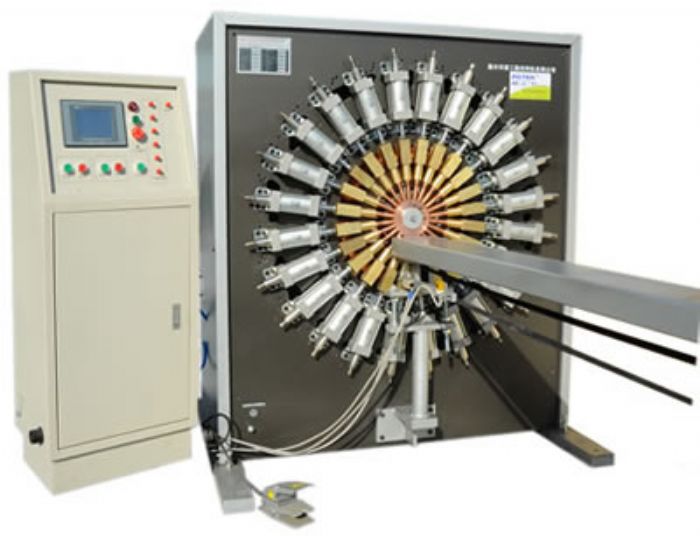

Mangas Filtrantes máquina de soldadura
Descripción
Wire cage welding machine Auto CNC filter cage welding machine line Multi-spot cage welder Filter cage:pull by step motor Wire cage welding machine Cage welding machine Model Wire qty Ring space Cage diameter(mm) Control unit DLN-16-5 8,10,12,14,16 No restriction 100-160 KD-DL08D DLN-24-5 8,10,12,14,16,18,20,22,24 No restriction 100-200 KD-DL08D General Specification Input voltage: 380V (2 phase) • Power frequency: 50/60Hz • Cooling method: natural cooling • Air pressure: 0.6-0.8 MPa • Insulation grade: F • Power capacity: 80 KVA • Working load: 20 KVA .
Características principales
Features 1. Rails (7500mm) and material shelf (7500mm) equipped and connected to the welding unit. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages. 2. Equipped with auto feeding unit, no restrictions on ring space. 3. Positioning mould manufactured with wire-cutting process, it features high accuracy, good insulation and long life. 4. Four air tanks, short air route inside the machine ensures quick response of the cylinder. 5. 25mm front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured. 6. Air valves (Airtac) together with stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s. 7. Controlled by micro-computing unit. 8. Time-sharing power-on transformer reduces the burden on local electricity grid. :
Ventajas competitivas
Wire cage welding machine Auto CNC filter cage welding machine line Multi-spot cage welder Filter cage:pull by step motor
Condiciones de pago
TT
Condiciones de envío
FOB Shanghai
