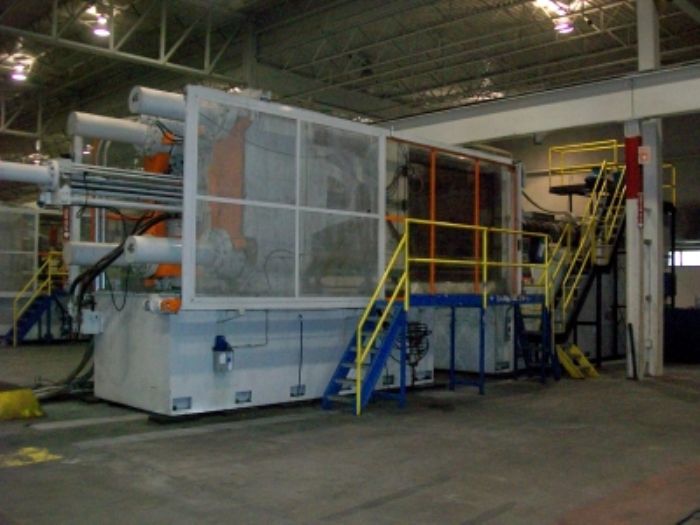

2035 Ton, 389 Oz. MIR Maquina de Inyeccion '99

Descripción

2035 Ton, 389 Oz. MIR Injection Molding Machine Model: RMP1850-11040 Year: 1999 Platen Size ...................... 88.58 x 88.58 Distance Between Tie Bars ........ 57.08 x 58.00 Moving Platen Stroke ............. 68.5 Max Daylight ..................... 139 Mold Height (Min/Max) ............ 27.56/70.87 Tie Rod Diameter ................. 11.023 Hydraulic Ejector Stroke ........ 17.7 Screw Size ....................... 150mm Oil Capacity .................... 3293L Machine Dimensions ...... 62.3L x 9 11W x 13 7H Machine Weight .................. 264,000 Lbs. Equipped w:/ 389 Oz Injection Unit Siemens 115U CPU 943B Controller Removeable Upper Operator Side Tie Bars Hydraulic Ejection Core Pull - Stationary Side Acumulator Package - 12 Bottles Manual Tie Bar Puller Electric Screw Drive .
