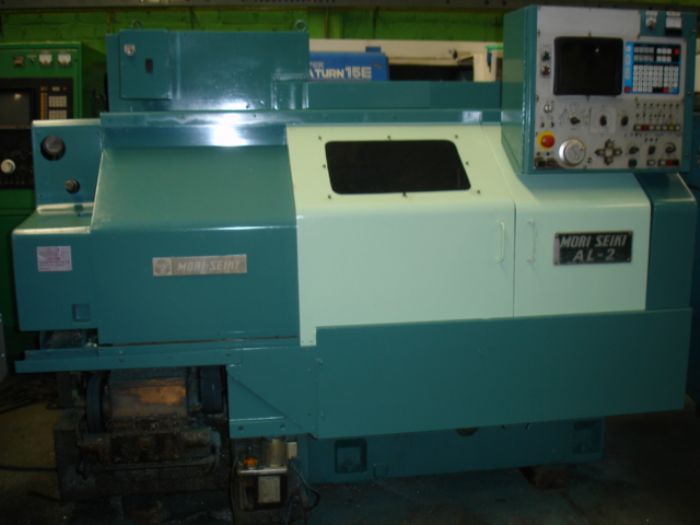

Torno CNC MORI SEIKI

Descripción

MORI SEIKI CONTROL YASNAC Model: AL-2BM Date: 1985/0 Control: YASNAC Phase: 3 Wire: 3 Volt: 220v Cycle: 60 Hz Load: 18.0 KVA MFG No. 33 Type: Y481082z Features: • 8-Station Turret. •Yasnac CNC Control. •Turbo Chip Conveyor. Specifications: Capacities: Swing Over Bed: 18.9 Swing Over Carriage: 12.2 Between Centers: 21.7 Maximum Machining Diameter: 9.8 Travels: Maximum Longitudinal Travel (Z): 19.7 Spindle: Spindle Center Height From Floor: 35.4 Spindle Nose: A2-5 Spindle Inside Taper: 1/20 Hole Thru Spindle: 1.69 Front Bearing I.D: 3.15 Spindle Speeds: 50 to 6000 rpm Tailstock: Tailstock Quill Diameter: 2.95 Tailstock Quill Taper: #4 Morse Taper Thrust: 990 lbs. Turret: Turret Indexing Number: 8 Turret Tool Positions: 8 Standar Cutting Tool Size: 1 Curvic Coupling Force: 7.08 Turret Clamping Force: 5,060 lbs. Ball Screws: Ball Screw Diameter X: 1.10 Ball Screw Diameter Z: 1.57 General: Main Motor: 5.5/7.5 kW Electrical: 220 Volt, Three Phase Overall Dimensions: 116 x 66 x 70 tall. Comes as shown in pictures. .
