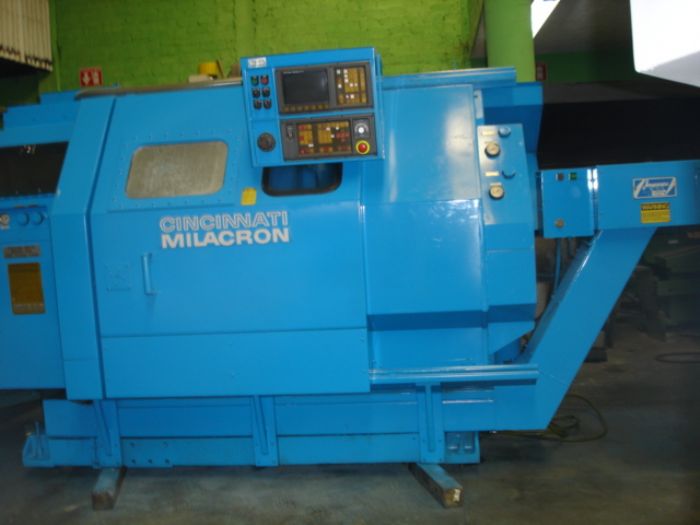

TORNO CNC CINCINNATI

Descripción

CNC TURNING CENTER Model: CINCINNATI MILACRON Serial No. A83209-34ª Date: 08-02-83 Control: GE FANUC Series O-T Size: 12 Max PSI: 535 Max R.P.M: 3000 P/N: 3046649 Cinturn 12U-40 Series: 1212 SPECIFICATIONS: Max Swing Over the Slant Bed 22 Standard Chuck Size 12 3-jaw hydraulic Cross Travel (X-Axis) 16.5 Longitudinal Travel (Z-Axis) 40 Cross Feed Range (Infinitely Variable) 0-200 IPM Longitudinal Feed Range (Infinitely Variable) 0-200 IPM Rapid Traverse Rate 400 IPM Spindle Bore 3.04 Spindle Nose A1-8 Spindle Speed Range 23-2240 RPM Spindle Drive Motor 30 HP Electrics 230/460/3/60 Machine Dimensions 156 x 80 Machine Height 85 AproxÍmate Machine Weight 15,000 LBS No. De Herramientas ATC: 6 .
