TORNO CNC

Descripción

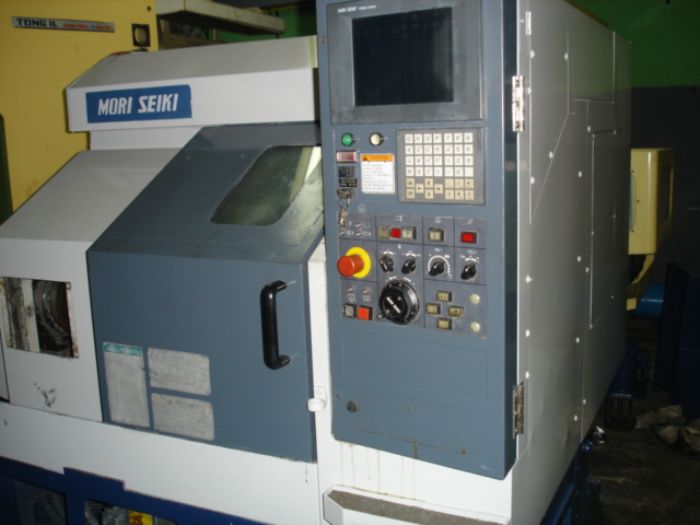

Control: MORI SEIKI msc-803 Serial No. 194 Date: 1997 Features: With a maximum turning diameter of 16.1 the Mori Seiki CL200 is the machine suited to your needs. The CL-200 has capability to turn pieces over 21 long and has 12 tool stations. • Box type bed construction and an optimized rib array, developed with FEM (Finite Element Method) increases rigidity around sliding components. The entire body is compact and sits on 6 ground contact points to minimize bed displacement during Z-axis movement and to ensure stable, high precision lathe machining. • Mori Seiki #MSC-803 CNC Control. • Turbo Chip Conveyor. Specifications: Maximum Turning Diameter: 16.1 Maximum Turning Length: 21 X-Axis Table Travel: 14 Z-Axis Table Travel: 12.2 Spindle Speeds: 35 - 3,500 rpm X-Axis Rapid Feed Rate: 1,181 ipm Z-Axis Rapid Feed Rate: 1,181 ipm Motor: 5.5 kW Electrical: 220 Volt, Three Phases Overall Dimensions (approx.): 5´ x 4´ x 5´ tall. Comes as shown in pictures. Weighs approx. 4,000 lbs. Frequency: 60HZ Full Load Current: 64 A Rated Power: 22KVA Date: 5M 1997Y .
